1000 IWSUB

https://www.ced.africa/web/image/product.template/283/image_1920?unique=0f675dc
(0 review)


Made in France in the Focal workshops, the 1000 IWSUB Utopia boasts brand new, exclusive architecture and can be installed horizontally or vertically. It incorporates the best Focal technology from the iconic Utopia line. Its three 6 1/2” (16.5cm) subwoofers with their ‘W’ cones offer unrivalled power handling: the bass reproduction is sensational, in Stereo as well as Home Cinema listening sessions.

₦ 4,884,366.51 4884366.51 NGN ₦ 4,884,366.51

$ 2,848.65

Not Available For Sale

  • Product Type
  • Nominal Impedance
  • Weight
  • Sensitivity (1W/1m)
  • Minimal impedance
  • Recommended amplifier power
  • Brand

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Contact Us
Product Type: 2-way closed-back in-wall
Nominal Impedance: 10 Ώ (selection 8 Ώ)
Weight: 9.6kg
Sensitivity (1W/1m): 83dB
Minimal impedance: 8.6 Ω
Recommended amplifier power: 100 - 750W (8 Ώ), 200 - 1500W (4 Ώ)
Brand: Focal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

1000 IWSUB

​ The 1000 IWSUB Utopia boasts brand new, exclusive architecture and can be installed horizontally or vertically.

‘W’ CONE

The ‘W’ sandwich cone perfectly optimises the frequency response curve by fully mastering the three key parameters of lightness, rigidity and damping. When you’re listening, it creates total sound transparency and a very low distortion rate: the finesse of the resulting sound rendering is exceptional.

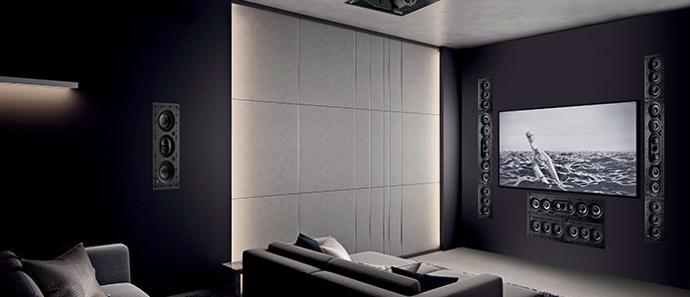

THE ULTIMATE HOME CINEMA EXPERIENCE

With the ability to be positioned horizontally or vertically, 1000 IWSUB Utopia has been designed to assemble perfectly with the 1000 IWLCR Utopia 3-way in-wall loudspeaker. It enhances the performance of your Home Cinema installation. The option to customise the impedance of the speaker drivers according to the number of products assembled allows the system's performance to be adjusted to enjoy an exceptional, bespoke installation.

COMFORTABLE AND ULTIMATE OPENNESS

The 1000 IWSUB Utopia in-wall subwoofer has been designed so that you can assemble it in the vertical or horizontal position with the 1000 IWLCR Utopia loudspeaker and other 1000 IWSUB Utopia subwoofers. It assembles discreetly thanks to the harmonious magnetic grilles attached using a premium aluminium strip.

SENSATIONAL BASS

Made in France in the Focal workshops, the 1000 IWSUB Utopia boasts brand new, exclusive architecture and can be installed horizontally or vertically. It incorporates the best Focal technology from the iconic Utopia line. Its three 6 1/2” (16.5cm) subwoofers with their ‘W’ cones offer unrivalled power handling: the bass reproduction is sensational, in Stereo as well as Home Cinema listening sessions.

Constantly pushing boundaries, the engineers have designed and conceived this subwoofer so that it assembles perfectly with the 1000 IWLRC Utopia reference loudspeaker, but also with as many other 1000 IWSUB Utopia models as desired.


Each product is connected to the others using the professional Speakon cabling provided: the only limit to the assembly options is your imagination.

Offering the ability to choose the impedance for each speaker driver according to the number of linked products, 1000 IWSUB Utopia allows an unrivalled audio installation without modifying your room, thanks to its ready-to-paint magnetic grille.

THE ULTIMATE HOME CINEMA EXPERIENCE

With the ability to be positioned horizontally or vertically, 1000 IWSUB Utopia has been designed to assemble perfectly with the 1000 IWLCR Utopia 3-way in-wall loudspeaker. It  enhances the performance of your Home Cinema installation. The option to customise the impedance of the speaker drivers according to the number of products assembled allows the system's performance to be adjusted to enjoy an exceptional, bespoke installation.

THE “W” COMPOSITE SANDWICH CONE

The “W” composite sandwich cone permits total optimization of the frequency response curve, thanks to the total control of three key parameters: lightness, rigidity and damping. At Focal, the letter “W” means Glass/ Glass, as it usually has two sheets of woven glass tissue that are “sandwiched” onto the structural foam core. The glass tissue benefits from the incredibly fine weaving of very long fibres. This choice offers a mass and a size clearly inferior to those in Aramid fibers or other Kevlar® fabrics, which generate coloration in the midrange. It’s also important to note that the molecular bond between the resin and the glass is greater than that obtained with Aramid fibres. The cone structure is more homogeneous and its behavior in flex is much more superior.

These unique characteristics of lightness and rigidity provide control of the signal transmission speed inside the material. Adjusting the thickness of the structural foam allows a very precise control of the “W” cone’s damping. The variation of the number of glass fibre sheets and the thickness of the central foam can easily optimize the cone’s behaviour according to the desired frequency range.When listening, the sound of the “W” cone is entirely transparent, has an excellent phase response and has a very low disortion rate (rigidity 20 times higher than Kevlar® or Aramid fibre).


IWSUB UTOPIA (8 Ώ)

IWSUB UTOPIA (72 Ώ)

Type of speaker

Closed-back in-wall

Closed-back in-wall

Speaker drivers

3 x 61/2” (16.5cm) Bass with ‘W’ cone


 Sensitivity (2.83V/3 feet - 1m)
83dB
74dB
Bandwidth (+/-3dB)
40Hz – 2.5kHz

Low-frequency cut-off (-6dB)
32Hz

Nominal impedance
 10 Ώ (selection 8 Ώ)
90 Ώ (selection 72 Ώ)

Minimal impedance

8.6 Ω

76 Ώ

Recommended amp power

100 - 750W (8 Ώ) 200 - 1500W (4 Ώ)

300 - 4000W (8 Ώ) 300 - 4000W (4 Ώ)

Ext. size (H x L x D)

233/8 x 12 x 4" (593 x 305 x 101mm)


Mounting dimensions (H x L)

221/4 x 107/8" (564 x 276mm)


Mounting depth
37/8" (99mm)

Net weight (with grille)
21.16lbs (9.6kg)

Box size (length x depth x height)
151/2 x 291/2 x 81/2" (395 x 750 x 215mm)

Total weight (with packaging)
27lbs (12.25kg)
