A Lutron Pico® Light Control is a battery powered RF remote that communicates with Lutron Lighting as part of your RA2 Select system.
Choose from a number of different options to find the right Pico for your environment.
Lutron Pico Remote Controls are compatible with both RA2 Select and HomeWorks® Wireless QS.

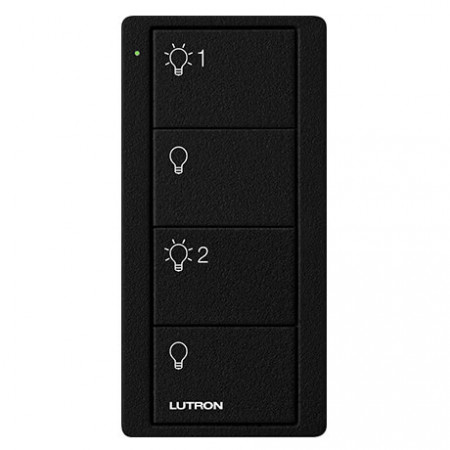

Pico remote control
Control lights, blinds and audio. Users can create a frequently used setting, save it and then recall it with the “Favourite” button.
The benefits of a Pico
You can add a Pico to any wall surface without cutting holes, running wire, plastering and repainting. Two ways dimming or switching control can be easily added where needed in a fraction of the time and labor it takes to install a wired two way. The Pico is battery powered with an industry leading 10-year battery life.
With a Pico and just one touch is all that is needed
Turn off all the lights in the home, control multiple lights or blinds at one time and control audio, instead of opening an app on a phone.
Add control where it is wanted
Mount a Pico on a table top pedestal. Table top pedestals are available in single, double and triple configurations. You can also mount a Pico on a wall with or without a wall plate. The Clear Connect wireless signal works around corners or through walls and is ultra reliable, which equals no call backs for you.
Lutron Pico Remote Controls are compatible with both RA2 Select and HomeWorks® Wireless QS.
Please Note: The 4-group toggle is only compatible with HomeWorks® Wireless QS.
Easily add a new and/or additional point of control without the need for new wires
Configure for use as a handheld control, wall mount control or table top control
Available in 4 button configurations and black and white finishes
Icon labelling options available for lighting and window treatment control
10-year battery life
Regulatory Approvals
CE Marked, TRA certified, RoHS compliant
Power
Operating Voltage 3VDC One (1) CR2032 battery included
System Communication and Capacity
Pico wireless controls communicate using Radio Frequency (RF) 868 to 868.8MHz (use reserved to Europe). Unique system addresses prevent interference between systems Pico wireless controls can be assigned to control shades or lighting devices that are within a range of 9m through standard constructions materials and 18m line of sight.
Mounting Considerations
All RF devices should be mounted on non metallic surfaces to ensure adequate performance
If you wish to mount your Pico wireless control to a metallic surface, the PICO-MOUNT-1-XX-CPN6774 will be required in order to maintain adequate RF performance, please contact Habitech on 01256 638500 for availability.
Environment
Ambient operating temperature: 0°C to 60°C Maximum 90% non condensing relative humidity Indoor use only
