With the Lutron Pico faceplate you can add control to any wall surface without cutting holes, running wire, plastering or repainting. A 2 way dimming or switching control can be easily added where your customer needs it, in a fraction of the time and labour it takes to install a wired 2 way.
With the range of faceplate finishes available from Lutron you'll be able to find the right match for your client's decor.
Add control where your customers may not have been able to before. No wires needed.
Please note: Use the provided #6-20 coarse thread flat head screws and co-ordinating anchors for mounting to drywall (plaster board)

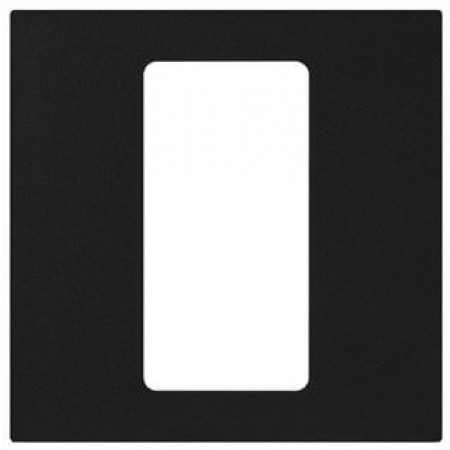

Plastic or metal face plates feature square corners or flat edges.
Glass faceplates feature square and bevelled edges.
Faceplate snap onto the faceplate adapter with no visible means of attachment
Pico controls mount flush with the face plate
Pico faceplates work with both square and round style wall boxes.
They can be mounted to any non-metallic surface.
Please note: Use the provided #6-20 coarse thread flat head screws and co-ordinating anchors for mounting to drywall (plaster board)
Models
Models: 1 Pico UK Single Gang, 2 Pico UK Single Gang, 3 Pico UK Double Gang and 4 Pico UK Double Gang Colour Finishes: Black Bright Chrome Clear White Glass Satin Brass Satin Chrome Satin Nickel White
Regulatory Approvals
Meets IEC requirements and and are CE marked cULus listed
Environment
Ambient operating temperature: 0°C / 32°F to 40°C / 104°F Maximum 90% non-condensing relative humidity Indoor use only
Dimensions
Single pedestal Height: 37mm / 1.46” with keypad attached Width: 45mm / 1.77” Depth: 75mm / 2.96”
